Carmix 3500TC
Carmix 3500TC
Off road mobile batching plant
NEW Ergonomic Cab Design
NEW Concrete-mate: Load Cell System

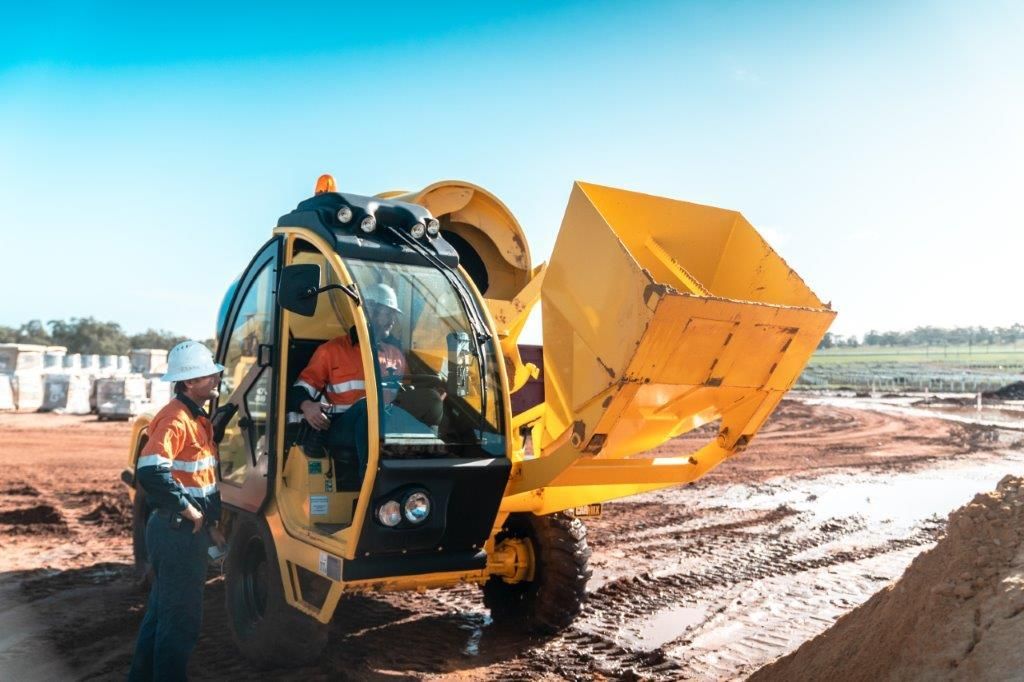

The Carmix 3500TC is the most popular unit worldwide due its’ versatility and the perfect balance between the 3.5m³ concrete yield per batch and the per hour productivity.
The 300° slewing drum has a 4850 litre capacity and is fitted with double mixing screws, while the drum’s rotation is controlled by a hydraulic motor which controls the mixing and discharging speed.
The Carmix 3500TC loading arm is equipped with a self-articulated hydraulically operated 600 litre shovel with opening gate that allows accurate loading of aggregates and cement. Additionally the Carmix 3500TC has two 400 litre tanks with a water pump capable of pumping 400 litres per minute to allow efficient addition of water to drum during batching.
The Carmix 3500TC has an operating speed of 0-10km/h, road transfer speed from 0-30km/h and is capable of operating on gradients of up 30° fully loaded.
The unique “Load Cell” Carmix electronic weighing system is available for the Carmix 3500TC unit which allows the precise control and monitoring of concrete production, therefore ensuring 100% quality of concrete. This system includes four Load Cells, located under the drum as well as a Concrete-Mate computer display and printer.
Additional Option for the complete Batch Plant :
NEW Promix: In-drum probe, easily allows one to monitor your concrete: slump, volume, temperature, humidity and ready-mix indicator: Your on site Lab!
Carmix 3.5TC is ideal for
Producing large volumes of high quality concrete on any jobsite, urban or rural. The Carmix 3500TC is highly versatile allowing it to function optimally in a variety of fields including mining, civils, housing, piling and precast concrete.
Technical Specifications (PDF)
